Wassertank-Abrollbehälter ca. 12.000L

Vehicle location: Bovenden, steel superstructure, rear outlet

Superstructure: Water tank roll-off container approx. 12,000 liters. ARCHIVE IMAGES Water tank without platform approx. 12,000 liters – according to DIN 30722-1

– Internal clear dimensions LxWxH: 5500x2394x1003 mm
– Material grade: S235 (St-37)
– Floor/side wall plates: Smooth steel plate, floor thickness 5 mm, sides 3 mm, roof and rear wall 4 mm
– Rear lower section: 2x Storz A-connectors with ball valve (4 inch)
– Rear upper section: one Storz B-connector with elbow and cap (2 inch)

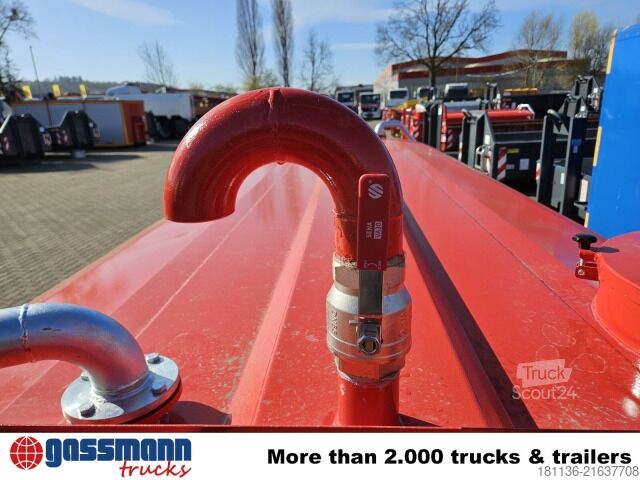

– Front upper hook: one Storz B-connector with elbow, coupling, and cap (2 inch)
– Galvanized and screwed-on climbing ladder on the front wall, pipe for venting (with ball valve for closing)
– Frame made from INP180
– Roof access port: diameter 600 mm
– Inside: 3 baffle plates, diameter 600 mm (large cavities)
– Watertight (leak-tightness tested)
– Greasable steel rollers

Tanks welded, degreased, blasted, interior primed with epoxy Temabond ST 200 300 μm, exterior primed with epoxy paint 60 μm and finished with 2K polyurethane topcoat (Polyurethane paint B7) 40 μm in RAL color shade 3000 red.

With UVV sticker (DGUV), checklist (safety instructions), and warning markings – watertight (leak-tightness tested). ACCESSORY INFORMATION WITHOUT GUARANTEE. Subject to change, prior sale, and errors excepted.
