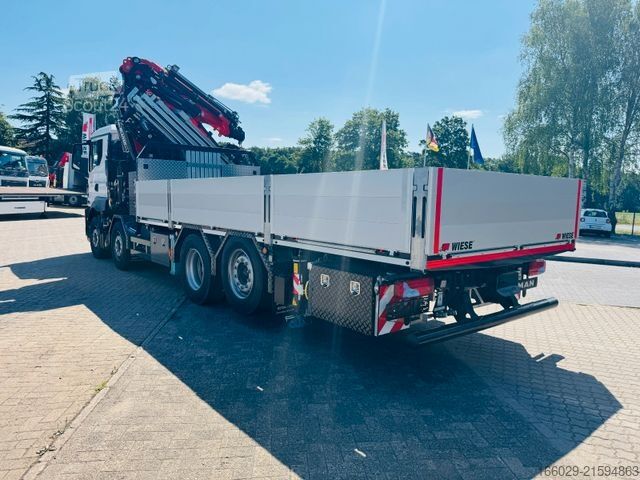

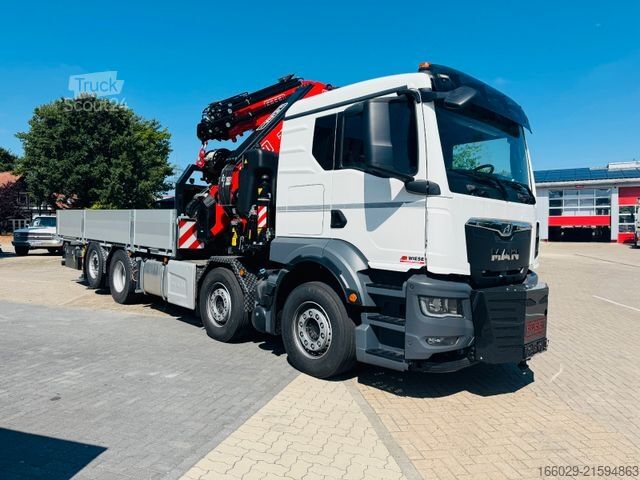

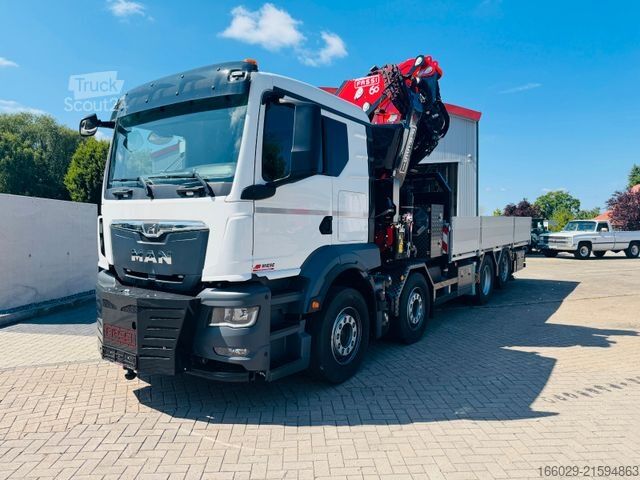

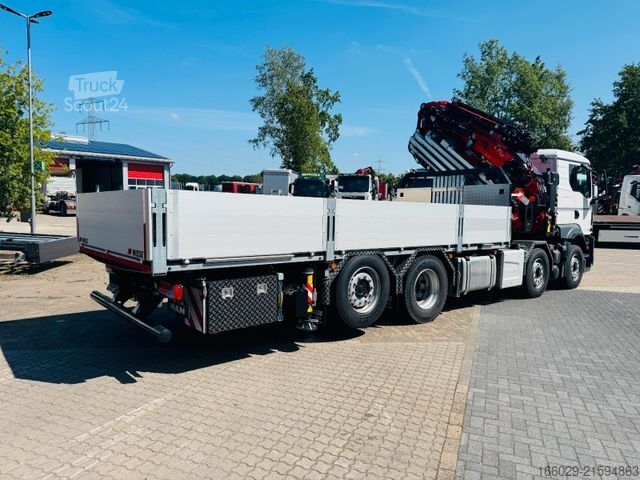

MAN MAN TGS 35.520 mit F705, F805, F905 TECHNO NEU

MAN TGS 35.510 - EURO 6, optionally available with F705, F805, F905 incl. L436 Fly-Jib and V20 winch!!!
TipMatic – Automatic Transmission

8x2
Three steered axles
STEERED / LIFT axle

Front support approx. 14,000 KG

Platform body with drop sides
6200x2550x600 mm

Access steps
Pedpfxjyw Dk Ie Am Sepu
Checker plate flooring
Removable drop sides
9 x LED lighting units
Extendable overwidth markings to 3,500 mm
Start/Stop
Amber beacons
8 x stake pockets
6 x lashing rings 6500 daN
Toolboxes
Towing hitch (AHK)
Storage compartments
Utility boxes
20-foot container locks
Perforated side profile with lashing rings 2500 daN

Crane: FASSI 705 R.2.7, F805R.2.7, F905R.2.7 with fully hydraulic 4-point outriggers, 6 hydraulic extensions on the main boom, Fly-Jib L436 with 6 hydraulic extensions, wire winch, cross-format radio remote control V7, emergency stop, FSC II outrigger monitoring, AWC (automatic winch control), full accessory package for winch operation, folding pulley, quick coupling between main boom and fly jib, and much more... TECHNO SERIES!! NEW CRANE model

Infinite slewing range
All hydraulic cylinders double-acting
Piston rods hard-chromed
Dual knuckle lever system with PROLINK (overbending jib up to 10°)
Electronic overload cut-off device with FX800
FASSI stability control FSC-S/2 incl. LMB II
Emergency stop, as well as optical warning (90% and 100%)
Pressure limiting and load-holding valves
XF-System (Extra Fast) + XP-System (Extra Power) + FL-System (Full Lift)
RCH or RCS radio remote control with linear levers and display of
Pressure range (in bar and %) and 90% + 100% warning on display
Danfoss D900 control block with 4 control valves mounted to crane pillar
Emergency manual control for crane functions
High-pressure filter supplied plumbed
Separate hydraulic tank (260l) with filter and oil cooler mounted to crane base
Hydraulic support legs, hydraulically extendable on both sides, support width 10.00m, support can be operated via remote control
Standard color RAL 3020 traffic red – all cylinders painted black
IMC system (Integral Machine Control) and ADC (Automatic Dynamic Control) = load-dependent speed control
Load hook and mounting bridles (short/500mm)
Travel position: folded transversely to driving direction
Note: Observe on-board voltage / 12V or 24V, standard is 24V

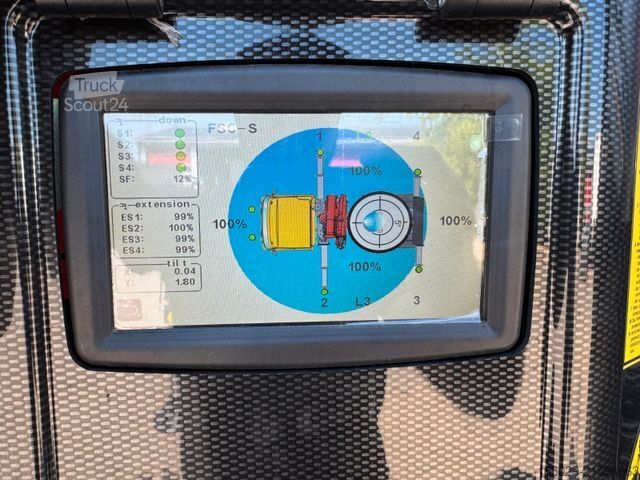

FASSI stability control FSC-TECHNO
Fassi V7S remote maxi – 8 linear levers
Proportional control block for support legs
180° hydraulically tiltable outriggers – both sides
Preparation for operation with variable displacement pump (LS)
Control system for 2 additional functions with 2 hose guides / hxp-techno
Auxiliary jib (Jib) L436, 6-fold hydraulically extendable
Jib Double Power (JDP)
Multi-coupling with cable duct for jib, fitted for 2 functions
Control system for auxiliary function (winch)
Winch type V20 – 2,000daN, 60m rope (12mm) with LMB and mechanical
Permanently installed rope guide rollers for operation with auxiliary jib
AWC – (Automatic Winch Control) for crane – automatic winch management
AWC – (Automatic Winch Control) for JIB – automatic winch management
Work lights operable via display or remote
1 LED work light fitted to knuckle boom
1 LED work light fitted to jib
LED for 2 outrigger legs, not fitted (crane)
LED for 2 outrigger legs, not fitted (auxiliary support beam)
Electrical rotary manifold with 14 slip rings
1 zinc primer from 720RA to F820RA
Zinc primer for JIB “L42”
Additional cost for Dinitrol application (cavity protection)
Additional cost for stainless steel
