STILL RX 20-16 Elektro Duplex Seitensch. Freibhub

STILL RX 20-16 Duplex Electric Forklift 1600 kg with Hydraulic Side Shifter

Mast: Duplex
Lift: Full free lift
Max. Lift Height: 3,560 mm
Rated Capacity: 1,520 kg

Drive: Electric
Mast: Duplex
Upright: NIHO 2,260
Free Lift: Full free lift
Hydraulic side shifter

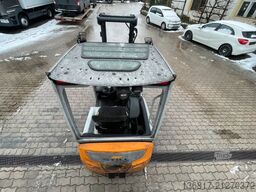

Standard overhead guard with roof window
2x LED headlights front
1x LED headlight rear
Warning system: STILL Safety Light Plus

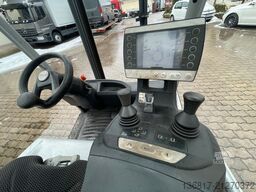

Joystick control
LCD display
Driver’s seat: Grammer
Driver’s seat: mechanically suspended
Panoramic mirror
Controls: seated operation
Rated load capacity: 1,600 kg
Kdsdpfxsyld Nfo Abash
Base load capacity: 1,520 kg
Load center distance: 500 mm
Load distance: 355 mm
Wheelbase: 1,341 mm
Self weight without battery: 2,236 kg
Self weight with battery: 3,122 kg
Axle load (with load) front/rear: 3,933 / 550 kg
Axle load (without load) front/rear: 1,314 / 1,570 kg
Tire size front: 18x7-8
Tire size rear: 15x4 1/2-8
Number of wheels (x = driven) front/rear: 2x /2
Track width front/rear: 932/168 mm
Mast/fork carriage tilt forward/backward: 3/8 °
Mast height lowered: 2,260 mm
Free lift: full free lift
Max. lift height: 3,560 mm
Mast height extended: 4,180 mm
Seat height/standing height: 1,015 mm
Overall length: 3,230 mm
Overall width: 1,099 mm
Overall height including mast: 2,260 mm
Overall height including cabin roof: 2,048 mm

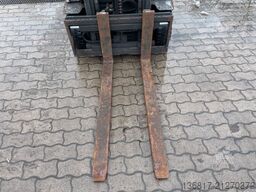

Fork dimensions (LxWxH): 1,200 x 100 x 40 mm
Fork carriage 2A with side shifter
Forks mechanically adjustable
Fork carriage width: 980 mm
Ground clearance at wheelbase: 123 mm
Aisle width with 1,000 x 1,200 mm pallet (crosswise): 3,209 mm
Aisle width with 800 x 1,200 mm pallet (lengthwise): 3,333 mm
Turning radius: 1,528 mm
Travel speed with/without load: 16.0 / 16.0 km/h
Lifting speed with/without load: 0.43 / 0.60 m/s
Lowering speed with/without load: 0.51 / 0.47 m/s
Drawbar pull with/without load: 3,200 / 3,340 N
Max. drawbar pull with/without load: 9,260 / 9,120 N
Gradeability with/without load: 12.8 / 20.1 %
Max. gradeability with/without load: 21.2 / 24.8 %
Service brake: electric
Drive motor output S2 60 min: 2x 4.5 kW
Lift motor output at 20% duty cycle: 9 kW
Lead-acid battery
Type: PZS, 05 EPZS 0625 SC
Weight: 886 kg
Battery voltage: 48 V
Battery capacity: 625 Ah

Charger:
Manufacturer: STILL
Type: D400G48/80B-HFX
Output voltage: 48V
Output current: 80A
Battery: 24 Pb cells
IP rating: IP21
Three-phase connection 16A,
