Telakaivukone, jossa on MS 25 -pikakiinnike ja kaivuämpäri

JCB JS 370 NLC 6 Zyl. ISUZU Mot.

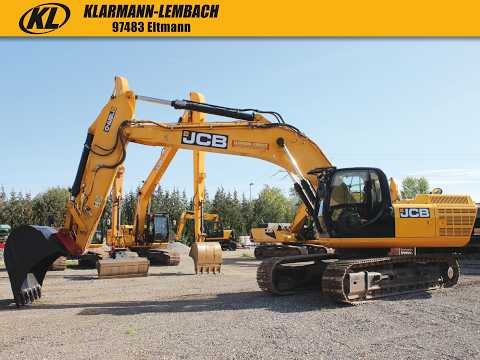

JCB Crawler Excavator Type JS 370 NLC with Stage IIIB (4i) ISUZU 6-cylinder turbo diesel engine:

- 7.8 l displacement
- DPF with automatic regeneration and a net engine output of 210 kW (282 hp)
- Mono boom
- Overload warning system
- EURO-CAB cabin with air conditioning
- Tinted safety glazing
- SMART Control system with 7" LCD color monitor and integrated reversing camera, "2go" safety switch
- Manual power boost function
- Automatic idle reduction
- Hydraulic damping system "Cushion Control"
- Electric refueling pump
- JCB Live Link
- 2 automatic travel speed ranges
- Manually selectable creep speed for maximum tractive force
- 2 adjustable axial piston pumps delivering up to 608 l/min, pressure 319 bar, or with boost pressure up to 348 bar
- Hydraulic cylinders with end-of-stroke cushioning
- 4.954 m undercarriage length
Hsdpfx Asvby Tujppsu
- 600 mm track shoes
- 2.99 m undercarriage width
- NLC undercarriage with 2.39 m track gauge and total length of 4.947 m
- 600 mm triple grouser track shoes (48 pieces per side)
- 3.23 m dipper arm with SBSV XD dipper stick
- 12.5 t lifting hook at the bucket linkage
- German homologation
- Radio
- Sun blind for the complete front windscreen, non-opaque, three length settings
- Air-suspended and electrically heated comfort seat with ventilation, high backrest, and safety belt
- Continuous track guiding
- Shear/hammer hydraulics and tilt bucket hydraulics for 3.23 m dipper stick
- Control circuit for a hydraulic quick coupler (incl. piping) basic version (without position control for dipper arm and boom)
- LED lighting plus additional working lights on the cab roof, lamp guards included, standard lighting also in LED

Version:
- TURBO II cyclone pre-cleaner for air filter
- XD floor plates; XD travel drive protection
- Including hydraulic quick coupler, type HS 25
- 1 heavy-duty bucket with approx. 2 cbm and ESCO rock teeth
